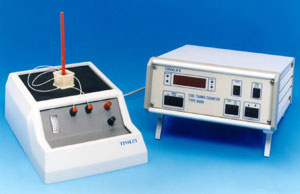

The Tinsley Turns Tester Type 9600 has been designed to check the number of turns on a winding immediately after it has been wound.
Quick and easy to operate, the Type 9600 provides an instant readout of turns, and performance is not affected by a normal workshop environment. In operation calibration is made against a standard coil. The coil under test is placed on the appropriate platform and the ends of the coil are connected to a pair of terminals. The number of turns on the test coil is indicated on the digital readout immediately after making the connection.


The Type 9600 Turns Tester, which has no moving parts, may be used in conjunction with any of the plug-in platforms described.

Instrument Size 340 x 255 x 115 mm
Instrument Weight 3.5 kg
Control Software 9600-307

The 9600-307 Control Software package has been developed to enable the 9600 Turns Tester System to be controlled via an IBM or fully compatible PC.

The software also allows re-calibration of the system from data which has been stored in a settings database on a PC. Measurement results are stored in a database which can easily be exported into most spreadsheet programs and subsequently used for projects such as quality analysis, test report writing and similar applications.

System requirement: 486 or above IBM or compatible PC with Windows 3.1 or above operating system.

Type 9601and 9602
The platform Types 9601 and 9602 cover the most commonly found sizes of wound bobbins or self supporting coils. Simple to use, the bobbin is placed over the probe and the termination leads, connected to the platform. The number of turns on the bobbin is then instantly displayed on the 9600 readout unit.
Specification 9601

-Probe Diameter 10mm
-Accuracy using standard coil supplied 0.5% กำ 1 digit
-Accuracy using identical sample 0.2% กำ 1 digit
-Will accommodate coils up to a maximum 140 mm high or 89 mm outside diameter
-Instrument Size 205 x 305 x 270 mm
-Instrument Weight 1.2 kg

Specifications 9602

-Probe Diameter 6 mm
-Accuracy using standard coil supplied 0.5% กำ 1 digit
-Accuracy using identical sample 0.2%กำ 1 digit
-Will accommodate coils up to a maximum 64 mm high or 50 mm outside diameter
-Instrument Size 205 x 305 x 220 mm
-Instrument Weight 1.1kg
Type 9603
This is most suited to the smaller sizes of bobbins and coils and is available with a choice of probe size. The standard 'flat' probe has a cross-section of 1.5 x 6.0mm. The alternative 'square' probe has a cross-section of 2.5 x 2.5mm. In operation the probe must be lifted to allow the test sample to be placed in the measuring position. The coil lead-outs are connected to the platform and the number of turns is read from the 9600 readout unit.
Specification 9603

-Designed for small coils
-Supplied with a removable vertical probe
-Probe Size 1.5x6 mm
-Maximum Coil Size 32 x 25 mm outside diameter
-Can be supplied with a probe 2. 5 x 2.5 mm for coils with a smaller inside diameter
-Accuracy using standard coil supplied 0. 5% กำ 1 digit
-Accuracy using identical sample 0. 2% กำ 1 digit
-Instrument size 205 x 305 x 220 mm
-Instrument weight 1.2k
Type 9606 and 9607
They are specially designed to measure toroidal wound coils. The 9606 is suitable for small cores and the Type 9607 is suitable for the larger varieties. In operation the probe is pulled forward and the core is placed over it. After returning it to the upright position, the level is set to suit the permeability of the cores being measured.
This is done by adjusting a front panel potentiometer. Electrical connection is made between the platform and the coil lead-outs and the number of turns is read from the 9600 readout unit.
Specification 9606

-Maximum Coil Size: - 39 mm outside diameter and 3mm inside diameter
-Instrument Size: - 205 x 305 x 220 mm
-Instrument Weight: - 1. 1 kg

Specification 9607

-Maximum Coil Size: - 125 mm outside diameter and 9mm inside diameter
-Instrument Size 205 x 305 x 240 mm
-Instrument Weight: - 1.8kg
-Accuracy: - 0. 5% กำ 1 digit
