With the advanced requirement of miniaturization and high frequency technology of coil production, the DWX tester is designed to test other coils and low inductance coils used in high-end electronic components.

Through the use of impulse power source with high-speed switch, highly efficient input circuit, and high-speed A/D sampling circuit, the DWX tester can offer a new solution to the low inductance coil tests.

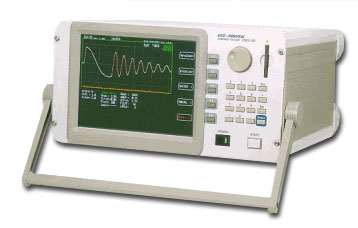

DWX-05 Impulse Winding Tester

DWX¡Ð01
DWX¡Ð05
DWX¡Ð10
Applied Voltage, Step, and Energy* At 1 kOhm Resistive Load 50V~1000V (10V step) Max 5 milliJoule 500~5000V(100V step) Max 0.12 Joules 1000~10000V (200V step) Max 0.5 Joules
Inductance Test Range More than 10£g¢Ö More than 10£g¢Ö More than 50£g¢Ö
Sampling Speed 8 bit/10 nano sec.(100MHz)
Sampling Memory 8192 byte
Sampling Range 10 Ranges:-4,-3,-2,-1,0,1,2,3,4,5
(Width 0 to 5 is the Compatible Range with the DW Series)
Input Test Circuit (Impedance) Resistive Voltage Divider (5 ¢Û£[)
Screen Display ResolutionWaveform Display Range 640 x 480 Dots (VGA), 8.4" TFT Color LCD, 4 Color Display
512 x 256 Dots
Detection Mode Master Waveform Comparison
Detection by Area Size Comparison, Differential Area Comparison and Corona Discharge
Master Waveform Memory Internal Memory: 42 Types (14 Type per Page, 3 Pages)
700-Types by Compact Flash Memory (14 Types/50 Pages)
External Interface Parallel I/O (Start, Reset, OK, NG, Busy, Master Numbers, etc.)
RS-232C (Test Control, Test Data, etc.)
Printer Port (Screen Hard Copy)
Ethernet Adapter (Option)
Accessories One Tester Cable (1.5m),
One
Power Cable (With 3P Adaptor)
One
Compact Flash Memory,
One
Parallel I/O Connector
One
Instruction Manual and Inspection Record
Enviormental Conditions 0¢J~40¢J, Voltage Upon Your Request¡G100V~240V¡Ó5¢H
Dimension (Excluding the Handle)/ Weight 345(W)x185(H)x370(D) Approx.10kg 345(W)x325(H)x370(D)
