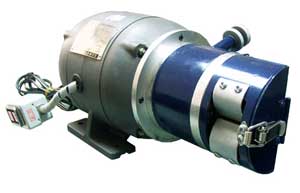

Brush type (S-01)
Features
* Insulation stripping of enamel, PE, PVF, APB...wires 各式漆包線PE., PVF, APB……絕緣層脫漆皆適用
* Fixed type 固定式
* Easy operation 操作容易
* Applicable for wire range from 0.1mm to 8mm 線徑適用範圍大 從0.1mm到0.8mm
規格
* Stripping by 0.6mm/0.1mm/0.2mm wire brushes or fiberglass wheel
鋼絲0.06mm 鋼絲0.1mm 鋼絲0.2mm 玻璃纖維輪
適用漆包線0.1mm 適用漆包線0.2mm 適用漆包線0.3mm 適用絞線
Bench mounted stripping machine are used for the stripping of varnished wires from 0.1mm up to 8mm diameter. By using different brush types the insulation quality can be matched to the operation. To strip the wires simply insert the enameled wire, turn by 90 degrees, remove the stripped wire.

Distances between driving axles with the brushes are infinitely adjustable by means of a knurled screw.

本脫漆機供固定在工作檯上,提供漆包線徑範圍從0.1mm到8mm脫漆用.
利用不同的脫漆輪而達到最有效的脫漆效果,可一次單股或多股脫漆,漆
包線放入兩脫漆輪之後向左右各轉90度即操作完成兩輪之間之輪距利
用螺絲調整
Specifications
Power supply
110V/220V, AC50/60Hz
電源:110V/220V ,AC50/60 內
Dimensions
390(L)x180(H)x180(W)mm
外型尺寸:390(L) x180(H)x180(W)mm
Weight
16 Kgs 淨重:16kgs
